Few small SUVs excel in new IIHS front crash prevention test

ARLINGTON, Va., April 25, 2024 (GLOBE NEWSWIRE) -- The Insurance Institute for Highway Safety is updating its vehicle-to-vehicle front crash prevention test to address crashes that occur at higher speeds and those in which the struck vehicle is a motorcycle or large truck. Only one of the first 10 small SUVs evaluated earns a good rating.

“This is a vital update to one of our most successful test programs,” IIHS President David Harkey said. “The vast majority of new vehicles now come with automatic emergency braking, and our research shows the technology prevents as many as half of all front-to-rear crashes. This new, tougher evaluation targets some of the most dangerous front-to-rear crashes that are still happening.”

The Subaru Forester is the only small SUV to earn a good rating in the updated test. Two others, the Honda CR-V and Toyota RAV4, are rated acceptable. The Ford Escape, Hyundai Tucson and Jeep Compass earn marginal ratings, while the Chevrolet Equinox, Mazda CX-5, Mitsubishi Outlander and Volkswagen Taos are all rated poor.

The original vehicle-to-vehicle front crash prevention evaluation was developed when the technology was relatively new, so the performance requirements only addressed low-speed crashes. By the time the original evaluation, with test runs at 12 and 25 mph, was discontinued at the end of 2022, all tested vehicles were earning the top rating of superior.

While real-world data indicate that front crash prevention is eliminating higher-speed crashes, the original test didn’t provide a way to gauge the performance of specific systems at those higher speeds.

Additional IIHS research also showed that today’s systems are less effective at preventing crashes with motorcycles and medium or heavy trucks than they are at preventing crashes with other passenger vehicles.

A tougher test

To address those issues, instead of the earlier 12 and 25 mph speeds, the updated test includes trials run at 31, 37 and 43 mph (50, 60 and 70 kilometers per hour). In addition to a passenger car target, it examines performance with a motorcycle target and a semitrailer. As a result, the new evaluation reflects a substantially greater proportion of police-reported front-to-rear crashes, including many that are more severe.

“Obviously, crashes that happen at higher speeds are more dangerous,” said IIHS Senior Research Scientist David Kidd, who led the development of the new evaluation. “Deadly underride crashes often occur when the struck vehicle is a large truck, and motorcyclists are frequently killed when they’re rear-ended by a passenger car, since their bike offers no protection from the impact.”

In the new evaluation, multiple trials are conducted with a target representing a passenger car, a target representing a motorcycle and an actual dry van trailer. Tests are run at all three speeds with each vehicle type. The tests using surrogates are conducted with the motorcycle or passenger car target positioned in the center of the travel lane and offset to the left or right, while the trailer is always positioned in the center of the lane.

The trials using targets evaluate both the forward collision warning and automatic emergency braking (AEB) systems. In each test run, an engineer drives the test vehicle toward the target at the selected speed and records when the forward collision warning occurs and how much the AEB system slows the vehicle to prevent or mitigate the impending impact. If the test vehicle fails to achieve a minimum speed reduction at the slower test speeds, only the forward collision warning system is evaluated in the higher-speed tests.

In all the test runs using the trailer, only the forward collision warning system is evaluated, and the driver steers out of the lane to avoid a crash.

Evaluating performance

Points are awarded for warnings that occur at least 2.1 seconds before the projected time of impact and for substantial speed reductions in the AEB tests. Speed reductions account for two-thirds and warnings account for one-third of the maximum possible score.

The good-rated Forester avoided a collision with the passenger car target at every test speed, avoided hitting the motorcycle target at 31 and 37 mph, and slowed by an average of 30 mph before hitting the motorcycle target in the 43 mph tests. The forward collision warning alerts also came more than the required 2.1 seconds before the projected time of impact in all those trials and also in those conducted with the trailer.

The acceptable-rated CR-V provided a timely forward collision warning alert and came to a stop or near stop in every trial with the passenger car target and in the 31 and 37 mph trials with the motorcycle target. However, it failed to slow consistently in the 43 mph trials with the motorcycle target.

Even vehicles with a marginal rating in the new test demonstrate a higher level of performance than what was required for the highest rating in the original vehicle-to-vehicle front crash prevention evaluation.

For example, the Escape avoided hitting the passenger car and motorcycle targets at the 31 mph test speed and slowed by a modest amount in the higher speed tests, regardless of where the targets were positioned. However, it lost several points because its forward collision warning came too late in all of the 31 mph tests.

The four poor-rated vehicles fell short in multiple test scenarios.

For example, the Equinox provided a timely forward collision warning in the tests with the trailer and passenger car target but either failed to give a warning or gave it too late in most tests with the motorcycle target. With the passenger car target, it slowed modestly in the 31 mph tests, and with the motorcycle target it barely reduced speed at all.

Updated front crash prevention ratings: Small SUVs

2023-24 Subaru Forester: GOOD

2023-24 Honda CR-V: ACCEPTABLE

2023-24 Toyota RAV4: ACCEPTABLE

2023-24 Ford Escape: MARGINAL

2023-24 Hyundai Tucson: MARGINAL

2023-24 Jeep Compass: MARGINAL

2023-24 Chevrolet Equinox: POOR

2023-24 Mazda CX-5: POOR

2023-24 Mitsubishi Outlander: POOR

2023-24 Volkwagen Taos: POOR

###

VNR:

Thur. 4/25/2024, 10:30-11 a.m. ET; repeat 1:30-2 p.m. ET (KU) GALAXY 19
SD Transponder 10/slot 4 (dl11912H) bandwidth 6 MHz; symbol rate 3.9787 FEC ¾

HD Transponder 10/Ch AB (dl11900.0H) bandwidth 18 MHz; symbol rate 13.235 FEC ¾

For more information, go to iihs.org

The Insurance Institute for Highway Safety (IIHS) is an independent, nonprofit scientific and educational organization dedicated to reducing deaths, injuries and property damage from motor vehicle crashes through research and evaluation and through education of consumers, policymakers and safety professionals. IIHS is wholly supported by auto insurers.

Attachment

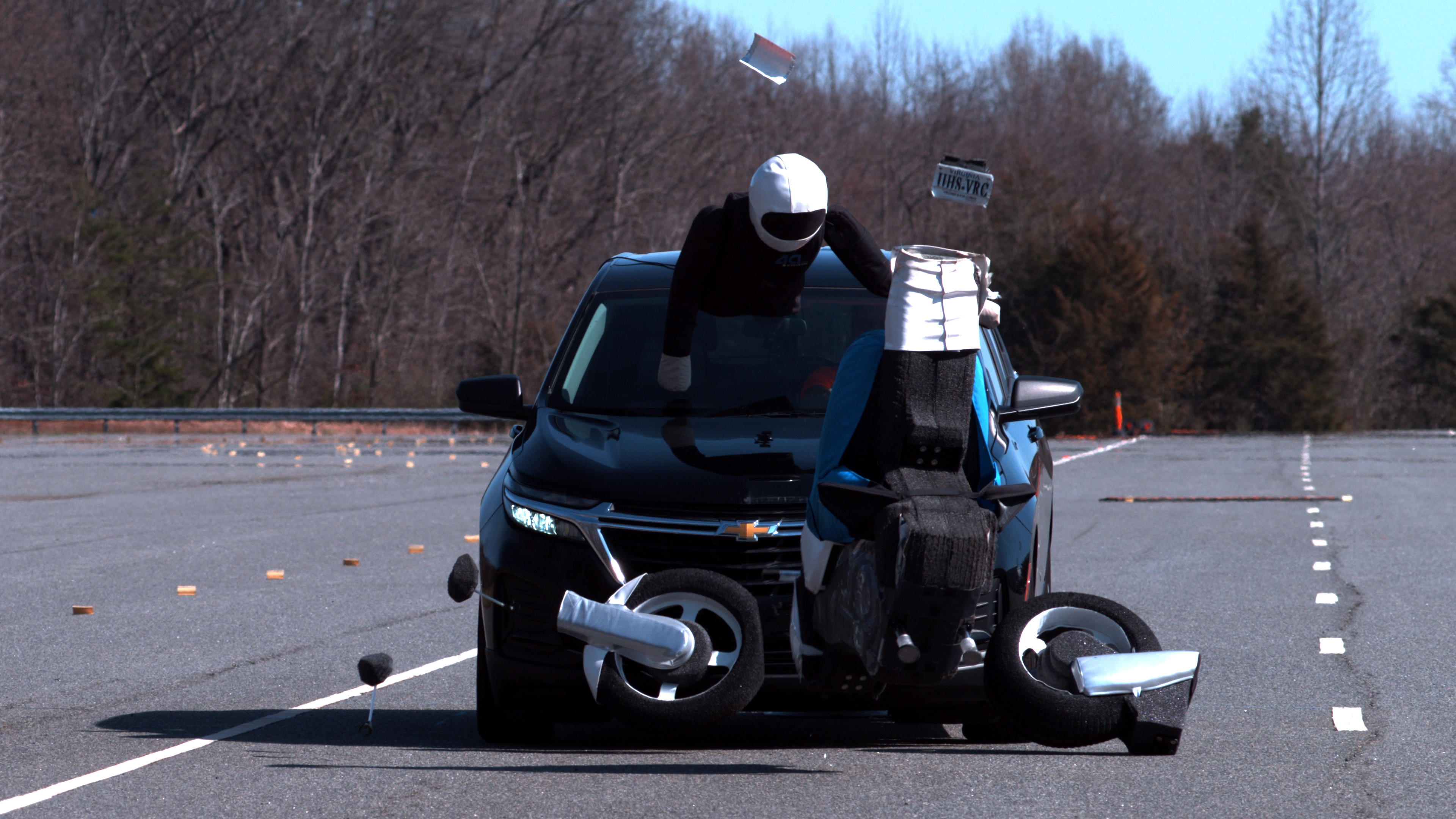

• The 2023 Chevrolet Equinox strikes a motorcycle target during a 31-mph front crash prevention test at the IIHS vehicle research center in Ruckersville, Va.
